RECYCLING AND UTILIZATION OF SOLID WASTE GENERATED IN THE ROURKELA STEEL PLANT, ODISHA

Pratap Kumar Swain, Trinath Biswal*, Previn Kumar Kar and Rahas Bihari Panda

Department of Chemistry, VSS University of Technology, Burla-768018, India.

*Corresponding Author:
Trinath Biswal
E-mail: biswaltrinath@gmail.com

Received 29 March, 2017; accepted 07 August, 2018

Visit for more related articles at Journal of Industrial Pollution Control

Abstract

Now-a-days developing countries compete with each other in primarily metal production. India occupies the 2nd position in metal production after China in the world. So this creates its own challenges in terms of management of solid waste produced from metal manufacturing industry. Amongst the metal manufacturing industries, Steel industries contribute largest amount of solid wastes. In India there is very rich deposits of hematite and contains higher percentage of alumina and inferior cokes. Steel plant produces a variety of solid waste material viz. BF slag (Air cooled & granulated), SMS slag. BF GCP sludge, sinter sludge, coke breeze and fly ash etc. The granulated BF slag is used for cement production but the slag containing high amounts of Fe is a major challenge to human being. This paper discusses the issues pertaining to the solid waste generation in Rourkela Steel Plant, Odisha in terms of volumes toxicity, challenges and efforts towards recycling and utilization in eco-friendly manner.

Keywords

BF slag, SMS slag, Weathering, Flue dust, GCP sludge.

Introduction

The major causes of environmental pollution are industrialization, population explosion, urbanization and rising living standard of people. Industrialization is very important for economy but it causes serious problem of pollution to our air water and soil. What Modern man produces today and considers as best it becomes the waste of tomorrow. Dumping of waste materials are increasing day by day (Singh, et al., 2013; Das, et al., 2007) There are several types of solid wastes thrown to the nature viz., industrial waste, debris due to new construction, demolition, plastics, ceramics, municipal waste, biomedical waste etc (Murthy, et al., 2017).

Rourkela Steel Plant (RSP) is an integrated Steel Plant and uses the LD (Linz-Donawitz) method of steel manufacturing. It had an associated fertilizer plant that produced nitrogenous fertilizer, but now is not in operation. At present the capacity is 4.5 million tons of hot metals, 4.2 million tons of crude steel and 3.9 million tons of saleable steel which is likely to be expanded to 10.8 MTPA by 2025 (Kumar, et al., 2006; Bence and Albee, 1968).

According to MOEF, Steel industry is one of the polluting industries. An integrated steel plant involves a number of complex industrial operation viz. mining and preparation of raw materials, iron and steel production etc. These are carried out through material handling plant, coal beneficiation, coke ovens, blast furnace, sinter plants, steel manufacturing, rolling mills, captive power plants etc. During these operations, huge amounts of various types of solid wastes are generated (Pradhan, et al., 2005; Braeza and Nelson, 1991).

Steel plants generate BF-slag, steel making slag, fly ash, BF sludges, dust from BF, steel manufacturing, refractories and coke etc. as solid wastes. The generation depend upon the amount and quality of raw materials used. We emphasis here on the types and amount of various solid wastes produced in RSP and its utilization along with plans to reduce in future (Cathy, et al., 1998; Chatterjee, et al., 1993).

Steel Industry Scenario

Currently steel with varying composition are available. The global steel production is growing each year. India became the world’s third largest steel producer in 2016 due to availability of raw materials and cost effective work force and continuous modernisation. The Indian steel industries have always strived for continuous up gradation with higher energy efficiency level to compete with global market (Pradhan, et al., 2005; Gomez, et al., 2009).

There was a healthy growth of 11% in steel production in 2016-17 with a growth of 10.7 million tons of crude steel output during Jan-Mar, 2017 in India. A significant shift has been noticed in the production of steel in world scenario. USA contributed 37% of global steel production in 1990 which is about 14% now. Steel produced by Asian countries accounts for almost 40% in the post war period. After 1960, recycled materials are used continuously in steel production and at present over 40% steel are produced using recycled material including steel scraps (Wouter, et al., 2005; Pires, et al., 2011).

The seven integrated steel plants in India are:

• TATA Steel

• Bhilai Steel Plant (BSP)

• Rourkela Steel Plant (RSP)

• Durgapur Steel Plant (DSP)

• Indian Iron & Steel Company (IISCO)

• Bokaro Steel Plant (BSL)

• Visakhapatnam Steel Plant (VSP)

The market demand of Indian steel has risen continuously. India exported 42% more steel in 2017 as compared to 2016. India may rise to second positon globally as steel manufacturing country 2018 (Norgate, et al., 2007; Fosnacht, 1982)

Types of Solid Wastes Generated in Rourkela Steel Plant

Several operations practised in the production of iron and steel generate solid wastes. The amount of solid wastes varies depending upon the manufacturing process used and pollution control measures taken by different plants. 8 tons of gases with moist dust and 0.5 tons of solid wastes are generated per of ton of steel produced using quality materials and effective procedure (Esezobor and Balogun, 2006; Prakash, et al., 2007) In steel plants of SAIL high waste are generated which varies from 820 kg/tcs to 1045 kg/tcs. The main solid wastes generated from Rourkela Steel plant (RSP) comprise of

i. BF Slag

ii. Granulated BF Slag

iii. Sludge from sintering and gas cleaning system

iv. Flue dust

v. Mill scale

vi. Fly Ash

vii. Coke Breeze

viii. Waste Refractories

ix. Lime/Dolomite dust

Categories of Solid Waste

Basically the solid wastes are classified into three categories:

i. Fly ash

ii. Ferruginous solid waste

iii. Non-ferruginous solid waste

Fly Ash: Fly ash is produced in the captive power plants of RSP. Presently 36000 T/month of fly ash is generated in the plant most of which is disposed of in ash ponds by using wet method.

Ferruginous Wastes: Ferruginous wastes are nothing but iron containing wastes generated at various steps of steel production. These have greater recycling potential and can replace raw materials like iron ore, lime stone and coke breeze (coal) (Patel, 2006; Katsuura, et al., 1996; Markkonen, et al., 2002).

Non-Ferruginous Wastes: The wastes with noniron components are known as non-ferruginous wastes. They include waste refractory bricks, lime and dolomite fine particles, fly ash and sludge. They are generated during calcination, refractory lining of converter and power plant operations Table 1 and (Fig. 1).

icontrolpollution-Sold-waste-status

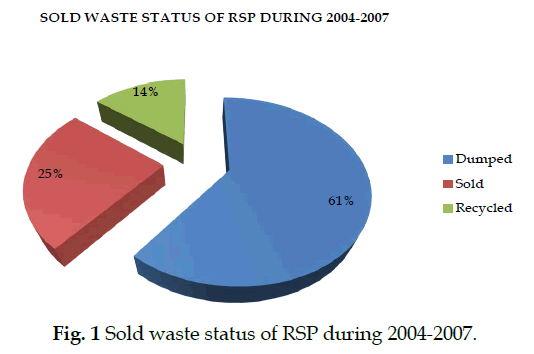

Fig. 1 Sold waste status of RSP during 2004-2007.

S. No Variables Production
(Kg/Ton of raw Steel)
Utilization (%)
Developed Countries RSP  Developed Countries RSP
A. Process Waste
Coke Breeze -- 80 -- 100
BF Slag 200-410 450 100 60
SMS Slag 70-140 165 65-90 35
Mill Scale 20-25 25 100 90
Waste refractory bricks 5-6 8 -- 59
B. Waste from Pollution Control Measure
  1.
Dust/ Sludge
(sintering)
-- 37 100 100
Dust (BF Flue gas) 5-11 22 100 60
Sludge (BF GCP) 3-9 12 30-75 1
Sludge/Dust (SMS) 7-15 10 100 37

Table 1. Solid waste production and utilization.

The steel plant solid wastes can be divided into following according to the source

(i) Solid Waste generated from process unit

(ii) Solid waste generated from Pollution control units

Generally, quality of raw materials and process adopted decide the quality and quantity of solid wastes produced in a steel plant. Solid waste management has posed a great challenge to the engineers and scientists. The steel plants established after 1970 generate huge amounts of solid wastes and are associated with huge unutilized air cooled slag and fly ash which causes various environmental problems (Shekdar, 2009).

Developed countries have reduced the quantity of waste drastically from 1200 kg to 200 kg per ton crude steel by following advanced steel making processes and better quality materials. Strict environmental regulation and legislation and innovative waste reduction methods have also helped in the waste reduction process. Their utilization rate is around 95-97% as compared to 40-70% recycling and utilization rate in India. Thus in India increase in cost of production decrease in productivity which leads to further environmental degradation (Koros, 2003; Pan, et al., 2016).

Solid wastes from process units are characterized by their size and composition. They have low moisture content and high percentages of Fe, Ca, Mg, Carbon particles etc. which make them suitable for recycling and to be reused by other industries (Pal, et al., 2003).

Methodology

Solid wastes can be assessed by the standard analytical procedure prescribed by Bureau of American Health Standard, Washington DC-2005 and Quantitative methods by I. Vogel. Both proximate and ultimate analysis will be made to determine the percentage of carbon, Sulphur, nitrogen, oxygen etc.

A. Mineraeological Analysis:

i. X-Ray Diffraction Study: It is carried out to identify various mineralogical phases and to find out the relative abundance of them by means of diffract meter.

ii. Optical Microscopy: This method is adopted to determine the texture, microstructure etc. by means of reflected light microscope

iii. Electron Microscopy: This method is used to study the size, shape and micro morphology of materials by means of electron microscope.

B. Chemical Analysis

It is used to analyse waste materials and to separate them from each other on the basis of chemical contents.

i. Atomic Absorption Spectroscopy: This method is adopted to analyze the traces of heavy metals like Ca, Ni, Co, Pb and Zn by means of Atomic Absorption Spectrophotometer.

ii. X-Ray Fluorescence: It is used to study the major and minor constituents of various slags by means of X-Ray spectrometer.

Physical properties and chemical compositions of the waste samples have been depicted in the following Tables 2-5. The projected data is less than the actual data as it depends on quantity of production and extension of the production unit.

Elements/Compounds Average % Elements/compounds Average %
C 29.90 MnO 0.58
Fe2O3 51.10 K2O 1.22
SiO2 6.31 Na2O 0.47
Al2O3 5.12 Fe(T) 35.73
CaO 4.90 Bulk density (g/cc) 1.4
MgO 0.88 Specific Gravity 2.59
Pb 0.024 Porosity (%) 45.15
Zn 0.042

Table 2. Physical properties and composition of BF-Flue dust (Prakash, 2007).

Elements/Compounds % Elements/compounds %
CaO 40-52 Al2O3 1-3
SiO2 10-19 P2Os 0.5-1
FeO 10-40 S < 0.1
MnO 5-8 Metallic Fe 0.5-10
MgO 5-10 Mg 1-2

Table 3. Composition of steel slag.

Elements/Compounds Percentage
Average Range
CaO 41 34-48
SiO2 36 31-45
Al2O3 13 10-17
MgO 7 1-15
FeO/Fe2O3 0.5 0.1-1.0
MnO 0.8 0.1-1.4
S 1.5 0.9-2.4

Table 4. Constituents of BF slag.

S. No. Solid Waste Source Amount in Tons Composition Utilization
(2008-2009)
1 BF Slag Blast Furnace 881897 Fe 46.52%   82.47%
CaO 22.30%
MgO 4.10%
MnO 2.6%
SiO2 26.31%
2 SMS Slag Steel Melting Shop 3455349 FeO 18-21% 45.05%
SiO2 16-18%
CaO 47-53%
3 BF Flue Dust BF Dust Catcher 15960 C 2.13% 100%
LoI 19.4-43.69%
Fe   30-40.5%
SiO2 7.4-11.6%
4 SMS Sludge Waste Water Regiment Plant of SMS 366917 C 2.13% 20.29%
MgO 2%
SiO2 2.1%
Fe 51.8%
S 0.21%
CaO 12.8%
LoI 6.7%
5 Scale Roll Mill Water Treatment Plants 34960 Mixed Iron Oxide -- 97.71%
6 Sludge Acetylene Plant 2502 SiO2 4-6% 100%
Al2O3 1-3%
CaO 60-70%
7 Calcined Lime Fine Calcination Plant #2 & LDBP 33181 CaO 70-80% 100%
MgO 3.5%
SiO2 1.7%
Al2O3 3.5%
8 Used Refractory Bricks From Recycling of Convertors, Furnace and Ovens 4359 Ca, Al2O3 and traces of Fe2O3, MgO -- 100%

Table 5. Solid waste generated in RSP (Das, 2003).

Solid wastes generated from RSP is given in above table. Among which BF Slag, Slag & Sludge from SMS are not fully utilized. The utilization of sludge & slag is less than 50% (Fig. 2-5).

icontrolpollution-production-process

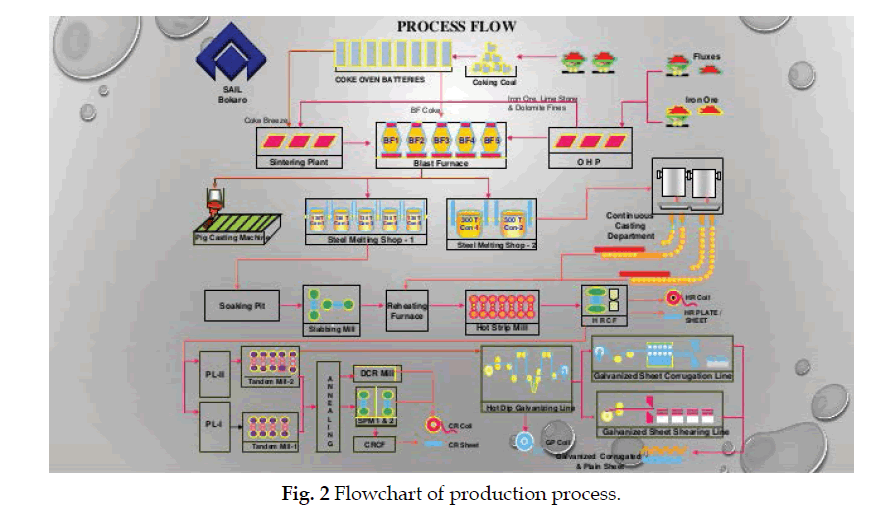

Fig. 2 Flowchart of production process.

icontrolpollution-Rourkela-steel

Fig. 3 Location map of Rourkela steel plant.

icontrolpollution-Rourkela-steel

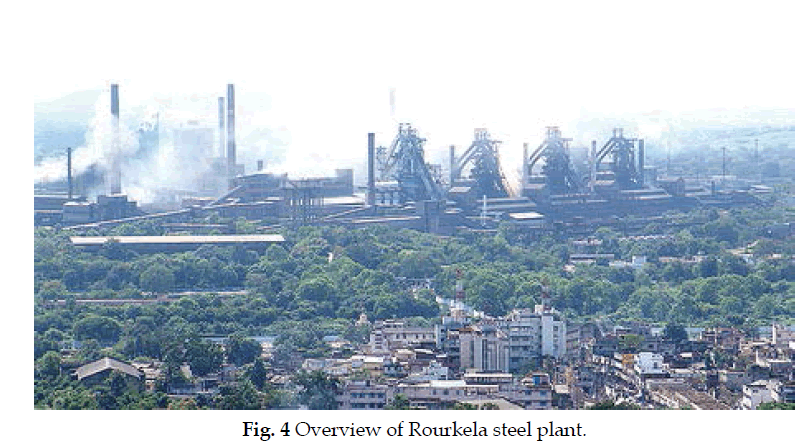

Fig. 4 Overview of Rourkela steel plant.

icontrolpollution-Sitalapara-dump

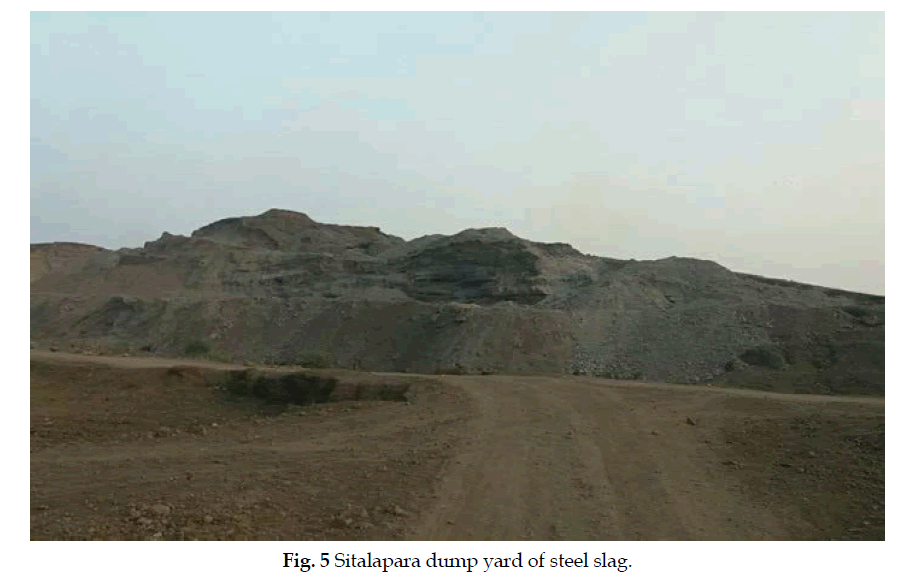

Fig. 5 Sitalapara dump yard of steel slag.

Reycling and Utilization of Non-Biodegradable Wastes

Wastes are categorized as per their hazardous nature as follows:

a. Hazardous waste

b. Non-hazardous waste

Disposal of Waste in RSP

In the steel industry wastes are disposed in a very systematic manner so that the effluents do not pollute and damage domestic water, soil, air quality, human habitat, flora and fauna.

On the basis of reutilization capabilities, these wastes may be of three types:

a. Wastes which are non-hazardous and successful recovery recycle and reuse of valuable materials is feasible.

b. Hazardous solid wastes which must be treated suitably

c. Non-hazardous waste from which recycle recovery and reuse may not be economical

Utilization of BF Slag

BF slag is utilized in cement and ceramic industries. Silica gel from BF slag can be recovered by leaching with H2SO4 followed by separation of gypsum. Silica gel is precipitated at pH 3.2. The ceramic tile was prepared by mixing calcium silica at various properties.

Removal of lead can be done using Freundlich method. The efficiency of removal of lead at equilibrium increases with increase in slag concentration but this decreases sorption capacity. The method can be used for granulated slag for removal of lead from industrial waste (Shi, 2004; Ramachandra and Saira, 2004)

Utilization of BF Dust

Presence of Na, K, Zn, Pb, Cd, S, Cyanides, oils etc in flue dust hinders the reutilization process. Na, K, S can cause operational hindrances and are not acceptable in hot metal composition. Due to presence of alkalis, the melting softening temperature is decreased They also cause lots of permeability problem and damage of refractory bricks. Alkali cyanides so formed cause environmental problem. Zinc is also considered as a problem as it increases the coke consumption by creating circuit in the furnace.

Utilization of Steel Slag

The steel slag is different from BF slag. Generally steel slag is used as aggregates for making granular base, embankment, filling materials and in hot mix asphalt pavements.

Utilization of L.D Slag

It is used as soil conditioner, fertilizers. It can be utilized for recovering metal values LD slag can be used to increase soil fertility and PH for the better production of tomato, potato, onion, spinach etc.

The studies on LD slag revealed that it can be used on posture farming, agro forestry and forestry. Smelting reduction technique is applied to recover valuable materials such as vanadium and chromium. LD Slag can also be used as road stone. It can also be tested and used in rail ballasts.

Utilization of LD Sludge

LD slag is pelletized to make best use of the use of LD sludge in sintering process. It can be used for production of hot metals by recycling. It is used to agglomerate the fines. It was revealed that LD sludge can give enough strength when mixed with mill scale. Generally, for pellet making 2% lime, 6% organic binder is required.

Towards Sustainable and Best Management Practices

Generation of slags are very high in Indian steel plants due to presence of higher ash content of coal, higher alumina and silica content in iron ore as compared to other developed countries. This can be avoided by proper combination of indigenous and imported coals and increased use of washed low alumina iron ore during sintering and Blast Furnaces operations. This will reduce metallurgical slag. Coal Dust Injection (CDI) and Coal Tar Injection system can be used to reduce BF slag. Optimization of Furnace operating parameters is required to reduce the coal dust generation.

Slag waste in Blast Furnace can be decreased by introducing high top pressure and oxygen enrichment. Ore beneficiation plant can reduce the impurities in raw materials. Installation of in-house slag granulation facilities is required to solve the problem of spillage in road during transportation and slag solidification.

Optimization of charging practices, reduction of furnace heat time and optimization reducing cycle through operation EAF will reduce solid waste generation. By proper control of limes, silicon and Sulphur, extra slag volume and loss of iron in the blast furnace, EAF and BOF can be avoided. To recover steel metals from steel slag, pit slag and used refractory materials slag processors need to be developed. Best utilization of steel slag in India should be considered to be used as cementing component which is viable from technical, economic and environmental point of view.

Discussion and Conclusion

waste is now considered as a potential to meet the challenges of shortage of energy and raw materials. This will also help to comply with environmental legislation regulation. Steel industry, ready-mix concrete companies, builders should be encouraged to use waste by products for Concrete and other building materials with a view to saving energy and reducing CO2 emission. In Indian steel industry generation of solid waste can be minimized by opting the following methods.

• Identification of sources, qualities and types of solid wastes produced duringsteel making process.

• Finding out reasons of solid waste generation.

• Use of advanced and innovative technology to minimize waste along with economic feasibility.

• Improvement in yield.

• Developing technology focusing on cost effective products based on proper processing of wastes and by product.

Thus conservation of potential resource and fully reuse of wastes can lead to zero waste management which poses a great challenge today.

References

Bence, A.E. and Albee, A.L. (1968). Empirical correction factors for the electron mictoanalysis of silicates and oxides. Jour Geol. 76 : 382-403.

Braeza, N.A. and Nelson, L.R. (1991). Technology for the treatment of Steel plant dust. World Steel Review. 1 : 27-35.

Cathy, M.G.J., Man, E.E., Stevenson, R.J., Hauset, D.J. and Groenewold, G.H. (1998). Fly ash and coal conversion by-products: characterization, utilization and disposal Symp. Proceedings, Material Research Soc., Pittsburg. 65 : 165-166.

Chatterjee, A., Murthy, C.V.G.K., Sripriya, R. and Prasad, H.N. (1993). Challenges of Recycling steel plant dusts/ sludge. Powder Handling and Processing. 5 : 53-57.

Das, B., Prakash, S., Reddy, P.S.R. and Mishra, V.N. (2007). An overview of utilization of slag and sludge from steel industries. Resource, Conservation, Recycling. 50(1) : 40-57.

Esezobor, D.E. and Balogun, S.A. (2006). Zinc accumulation during recycling of iron oxide wastes in the blast furnace. Iron making and Steel making Process, Products & Application. 33 : 419-425.

Fosnacht, D.R. (1982). Recycling of ferrous of ferrous steel plant fines. State of the Art Iron Making and Steel Making. 8 : 22-25.

Gomez, E., Amtha, R.D., Cheeseman, C.R., Deegen, D., Wise, M. and Boccacini, A.R. (2009). Thermal plasma technology for the treatment of wastes. Journal of Hazardous Materials. 161 : 614-616.

Katsuura, H., Inoue, T., Hiraoka, M. and Sakai, S. (1996). Full-Scale Plant Study on fly ash treament by the acid extraction process. Waste Management. 16 : 491-494.

Koros, P.J. (2003). Dusts, scale, slags, sludges not wastes but profits. Metallurgical and Materials Transactions B. 34 : 769-779.

Kumar, S., Kumar, R. and Bandopadhyay. (2006). Innovative Methodologies for the utilization of wastes from metallurgical and allied industries. Resources, Conservation and Recycling.  48 : 301-314.

Markkonen, H.T., Henino, J., Laitila, L., Hiltunen, A., Poylio, E. and Harkki, J (2002). Optimisation of steel plant recycling in Finland: dusts, scale and sludge. Resources Conservation and Recycling. 35 : 77-84.

Murthy, YI., Agarwal, A. and Pandey, A. (2017). Characterization of Mill scale for potential Application in construction industry. Indian Journal of Engineering. 14 : 71-76.

Norgate, T.E., Jahanshahi, S. and Renkin, W.J. (2007). Assessing the environmental impact of metal production process. Journal of Cleaner Production. 15 : 838-846.

Pal, J., Choudhury, P.N. and Goswami, M.C. (2003). Utilization of L.D Slag – An overview. Metallurgy and Material Science. 45 : 61-72.

Pan, S.Y., Adhikari, R., Chain, Y.H., LI, P. and Chirag, P.C. (2016). Integrated and innovative Steel slag utilization for iron reclamation. Green material production & CO2 fixation via accelerated carbonation. Journal of Cleaner Production. 137 : 617-631.

Patel, R.K. (2006) Environmental pollution status as a result of limestone and dolomite mining- A case study. Pollution Research. 23 : 428-432.

Pires, A., Martinho, G. and Chang, N.B. (2011). Solid waste management in European Countries: A review of system analysis techniques. Journal of Environmental Management. 92 : 1033-1050.

Pradhan, N., Das, B. Acharya, S., Kar, RN., Sukla, LB. and Mishra, VN. (2005). Removal of phosphorous from LD Slag using heterotrophic bacterium. Mines Metallurgical Process. 21 : 149-152.

Pradhan, N., Das, B., Acharya, S., Kar, R.N., Shukla, L.B. and Mishra, V.N. (2005). Removal of phosporousfrom L.D Slagusing heterotrophic bacterium. Mines Metallurgical Process. 21 : 149-152.

Prakash, S., Reddy, P.S.R. and Misra, V.N. (2007). An Overview of Utilization of Slag and Sludge from Steel Industries. Resources, Conservation and Recycling. 50 : 40-57.

Ramachandra, T.V. and Saira, V. (2004). Exploring possibilities of achieving sustainability in solid waste management. Indian Journal of Environmental Health. 45 : 255-264.

Shekdar, A.V. (2009). Sustainable Solid waste management: An inegrated approach for Asian countries. Waste Management. 29 : 1438-1445.

Shi, C. (2004). Steel Slag-its production, processing, characteristics and cementitious properties. Journal of Materials in Civil Engineering, 16 : 230-236.

Singh, R., Gorai, A.K. and Segaran, RG. (2013). Characterization of LD slag of Bokaro Steel Plant and its feasibility study of manufacturing commercial fly ash bricks. Environmental Technology and Management. 16 : 129-145.

Wouter, J.J., Huijgen, R. and Comans, N.J. (2005). Mineral CO2 Sequestration by steel slag carbonation. Environmental Science and Technology. 39 : 9676-9682.
