Department of Soil Science and Agricultural Chemistry, J. N. Krishi Vishwa Vidyalaya, Jabalpur 482 004, M.P., India
Visit for more related articles at Journal of Industrial Pollution Control
Contanimation of chromium is considered a serious environmental pollutant due to wide industrilization. The chromium concentration in plants 0.006 to 18 ppm and soil ranging from 10 to 50 ppm depending on parent material. Accourding to Environmental Protection Agency (EPA) < 0.1 ppm concentration of chromium in drinking water is permissible on the basis of health considerations. Toxicity of Cr to plants depends on its valence state Cr (VI) is highly toxic & mobile, where as Cr (III) is less toxic. Cr (VI) is present as either dichromate (Cr2O7 2-) in acidic environments or as chromate (CrO4 2-) in alkaline environments. Charomium toxicity affects the plant dry matter yield as well as some physiological processes such as photosynthesis, mineral nutrition etc. Remediation of soils contaminated with Cr using biorimediation, cheletion and remediation by reduction tecniques appears to have great potential for clean up of Cr - Contaminated soils and water. INTRODUCTION
Chromium, Toxicity, Bioremediation, Chelation
Chromium was first discovered in the Siberian red lead ore (crocoite) in 1798 by the French chemist Louis - Nicholas Vauquelin. Chromium is a greak word (Chroma = colour), which means coloured compounds. Due to wide industrial use, chromium is considered a serious environmental pollutant. Contamination of soil and water by chromium is of recent concern chromium occurs nature in bound forms that constitute 0.1 - 0.3 mg kg-1 of the Earth’s Crust. A maximum acceptable concentration of 0.05 mg L-1 (50 mg L-1) for chromium in drinking water has been establised on the basis of health considerations. Toxicity of chromium to plants depends on its valence state, Cr (VI) is highly toxic and mobile (which are usually occurs associated with oxygen as chromate (CrO42-) or dicromate (Cr2O72-). Whereas, Cr (III) is less mobile, less toxic and is mainly found bound to organic matter in soil and aquatic environments (Becquer et al. 2003). Chromium is a major source of aquatic pollution in India but the main areas for their concentration are TamilNadu, Uttar Pradesh and West Bengal.
Position in the periodic table

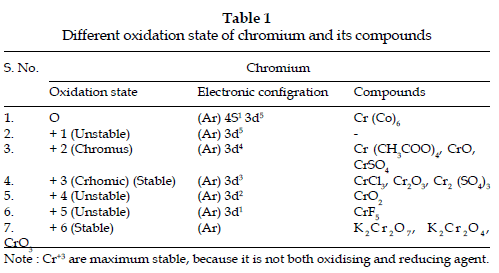

Chromium (atomic number 24, atomic mass 51.99) has on outer electronic configuration of 3d5 4S1 and belongs to VI B group or chromium group on the periodic table. In soil the ionic form of chromium that is abserved by plants are Cr+3 and Cr+6. Cr (III) was absorbed more rapidly then Cr (VI). The different oxidation state of chromium is given in below (Table 1).
Chromium in the environment

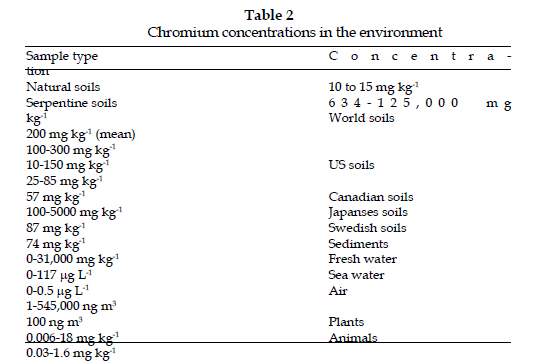

Chromium is found in all phases of the environment including air, water and soil (Table 2).
The chromium concentration in soil ranges from 10 to 50 mg kg-1 (Adriano, 1986). Cr concentration varies widely in the atomsphere from background concentration of 5.0 x 10-6 to 1.2 x 10-3 μg m-3 in air samples from remote areas such as Antarctica and Greenland to 0.015 to 0.03 μg m-3 in air samples collected over urban areas (Nriagu, 1988).
Anthropogenic source of chromium
Cr and its compounds have multifarious industrial uses. They are extensively employed in leather processing and finishing (Nriagu, 1988) in the production of refractory steel, drilling muds, electroplanting cleaning agents, and catalytic manufacture and in the production of chromic acid. Hexavalent chromium (VI) componds are used in industry for metal planting, cooling tower water treatment, hide tanning and until recently, wood preservation. These anthropogenic activities have led to the wide spread contamination that Cr shows in the environment and have increased its bioavailability and biomobility. (Kotas and Stasicka, 2000).
The leather industry is the major cause for the high influx of Cr to the biosphere, accounting for 40% of the total industrial use (Barnhart, 1997). In India, about 2000 to 32000 tons of elemental Cr annually escape into the environment from tanning industries. Even if the recommonded limit for Cr concentration in water are set differently for Cr (III) (8 μg L-1) and Cr (VI) (1 mg L-1), it ranges from 2 to 5μ g L-1 in the efluents of these industries (Chandra et al. 1997).

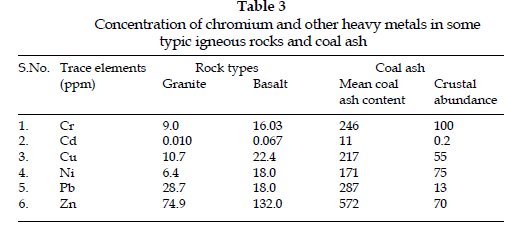

The chromium content as well as other heavy metals in any soil depends initially on the nature of parent materials. Flanagan (1969) reported that the concentration of heavy matels was higher in basaltic rocks and comparatively low in granite rocks and Vine and Tourlets (1970) reported that the heavy metal composition in coal ash (Table 3). Some fertilizers and soil amendments also contain chromium in soil (Table 4).
Uptake of chromium
Chromium is a toxic, non-essential element to plants, hence they do not posses specific mechanisms for its uptake. Therefore, the uptake of this heavy metal in through carriers used for the uptake of essential metals for plant metabolism. The pathway of Cr (VI) transport is an active mechanism involving carriers of essential anions such as sulphate (Cervantes et al. 2001). Fe, S and P are known also to complete with Cr for carrier binding (Wallance et al. 1976).
Independent uptake mechanisms for Cr (VI) and Cr (III) have been reported in barley. The use of metabolic inhibitors diminished Cr (VI) uptake whereas it did not affect Cr (III) uptake, indicating that Cr (VI) uptake depends on metabolic energy (Skeffington et al. 1976). An active uptake of both Cr species, slightly higher for Cr (III) than for Cr (VI), was found in the same crop (Ramachandran et al. 1980).
Chromium toxicity in plants
Toxicity of Cr to plants depends on its valence state, Cr (VI) is highly toxic and mobile whereas Cr (III) is less toxic. Toxic effects of Cr on plant growth and development include altrations in the germination process as well as in the growth of roots, stems and leaves, which may affect total dry matter production and yield. Cr also causes deleterious effects of plant physiological processes such as photosynthesis, water relation and minerals nutrition.
In plans, high levels of Cr supply can inhibit seed germination and subsequent seedling growth. Peralta et al., (2001) found that 40 ppm of Cr (VI) reduced by 23% the ability of seeds of lucerne (Medicago sativa) to germinate and grow in the contaminated medium. Reductions of 32-57% in sugarcane bud germination were observed with 20 & 80 ppm Cr, respectively (Jain et al. 2000).
Remediation of chromium contaminated soils and water
Chromium remendiation through microorganism or plants may be the best technology in present to clean up Cr contaminated sites. Yadav et al. (2005) gives some remediation process for Cr contaminated soil and water which are given below :
1. Bioremediation - The decontamination of polluted or degraded soils by means of enhancing the chemical degradiation or other activity of soil organisms. Losi et al. (1994), they found that organic matter content, bioactivity and oxygen status were among the important factors. Under aerobic field moist condiations, organic matter rich soil reduced 96% of added Cr (VI). Organic matter enhances the reduction of chromate in soil by increasing microbial activities. Bacterial populations resistant to as much as 500 mg L-1 Cr (VI) were directly isolated from two uncontaminated soils.
2. Phytoremediation - Phytoremediation of Cr pollution can be achieved by using plants to remediate heavey metal contraminated sites called phytoremediation. Shahandesh and Hossner (2002) reported that the Brassica junea and Helianthus annus plant speices absorbed maximum Cr concentration about 1400 mg kg-1.
3. Rhizofiltration - Another promising clean up technology appears to be rhizofiltration which involves use of plant roots to remove contaminants such as heavy metals from contaminated water (Dushenkov et al. 1995). Generally aquatic plants are growing in contaminated water. Examples- Scirpus lecusteris, Phragmites karka and Bacopa monnieri.
4. Phytoextraction - The extraction of metal from polluted soils into harvestable plant tissues (Phytoextraction). Very few plant species such as Sutera fodina, Dicoma niccolifera and Leptospermum Scoparium have been reported to accumulate Cr to high concentrations in their tissues.
5. Cheletion - Nutrient culture studies revealed a marked enhancement in uptake and translocation of chelated 51Cr in P. verlgaris. Cr chelated by DTPA was most effectively translocated followed by 51Cr-EDTA and 51Cr-EDDHA (Alhalyc et al. 1995).
6. Remediation by reduction of Cr (VI) in soils - Remediantion by reduction schemes employing microbiological and chemcial processes. Many new techniques and chemical reaction have been developed for the remediation of Cr (VI) - contaminat soils and ground water including those using carbon based minerals, zero and divalent Fe, reduced sulphur containing compounds and H2 gas. The rates and extent of reduction of Cr (VI) by each of these are dependent on pH, aeration status and the concentration and reactivity of the reducing agent.
Manures have been used successfully to reduce Cr (VI) in chromite ore processing, residue - enriched soils (Higgins et al. 1997). Zero valent Fe has been especially with reactive permeable barrier walls (Puls et al. 1999) and divalent Fe has been used for reduction of Cr (VI) in soil and aqueous systems, with Fe (II) in soluble and insoluble forms and with and without light indused reduction of Fe (III), (Buerge and Hug, 1999). Reduced sulphur containing compounds (eg. Fe (II) sulfides, dithionite etc) have been used to reduce Cr (VI) directly or to creat reduced colloids or conditions in soils and ground water, (Zouboulis et al. 1995). Hydrogen gas has also been used to reduce Cr (VI) under methanogenic conditions, (Marsh and McInerney, 2001).
Chromium is a metal found in nature deposites. The two largest sources of chromium emission in the atmosphere are from the chemical manufacturing industry and combustion of natural gas, oil and coal. The greatest use of Cr is in metal allooys such as stainless steel, protective coatings on metal, magnetic tapes and pigments for paints, cements, paper etc.
According to EPA found Cr to potenially cause the following health effects when people are exposed to it at levels skin irritation or ulcreation, damage to liver, kidney, circulatory and nerve tissues. If the Cr (VI) compounds present in high concentration can increase the risk of lung cancer.
Chromium bioremediation through microorganism or plants may be best technology in present to clean up Cr contaminated sites and these technologies are eco feiendly.
