Visit for more related articles at Journal of Industrial Pollution Control
In this investigation, a feasibility study is made to use Rice Husk Ash as an admixture to an already replaced Cement with fly ash (Portland Pozzolana Cement) in Concrete, and an attempt has been made to investigate the strength parameters of concrete (Compressive and Flexural). For normal concrete, Indian Standard (IS) method of mix design is adopted. Five different replacement levels namely 5%, 7.5%, 10%, 12.5% and 15% are chosen for the study concerned for replacement method. A range of curing periods starting from 3 days, 7 days, 28 days and 56 days are considered in the present study.
Air quality index, Ambient air quality, Air monitoring.
India is a major rice producing country , and the husk generated during milling is mostly used as a fuel in the boilers for processing paddy , producing energy through direct combustion and / or by gasification . About 20 million tones of RHA is produced annually. This RHA is a great environment threat causing damage to the land and the surrounding area in which it is dumped. Lots of ways are being thought of for disposing them by making commercial use of this RHA. In the present investigation, Portland cement was replaced by rice husk ash at various percentages to study compressive and flexural strength (Min-Hong Zhang and Malhotra, 1996).
Cement used in the experimental work is PORTLAND POZZOLONA CEMENT conforming to IS: 1489 (Part1)-1991.
Rice Husk Ash
Rice Husk Ash used in the present experimental study was obtained from N.K Enterprises Jharsuguda, Orissa.
1. Fine Aggregate
Fine aggregate was purchased which satisfied the required properties of fine aggregate required for experimental work and the sand conforms to zone III as per the specifications of IS 383: 1970.
2. Coarse Aggregate
Crushed granite of 20 mm maximum size has been used as coarse aggregate. The sieve analysis of combined aggregates confirms to the specifications of IS 383: 1970 for graded aggregates.
This is the name of the super plasticizing admixture manufactured by “FOSCROC Chemicals” used in this study to produce workable concrete.
In this project clean potable water was obtained from Department of Civil Engineering, GITAM ,University for mixing and curing of concrete.
Mix Design for M20-Grade Concrete

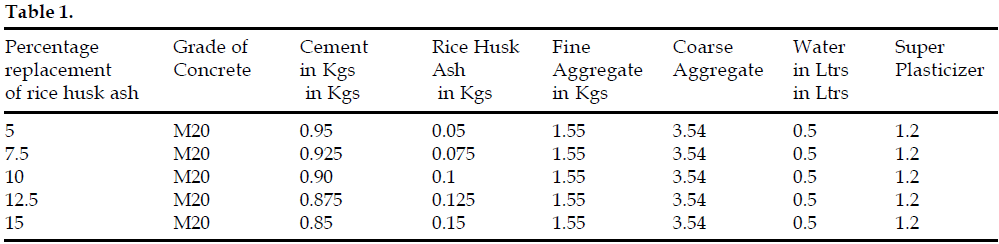

The mix proportions considered for each replacement by replacement method with RHA are presented in Tables (IS 120262 - 1975).
Test for compressive strength and flexural strength of RHA concrete specimen

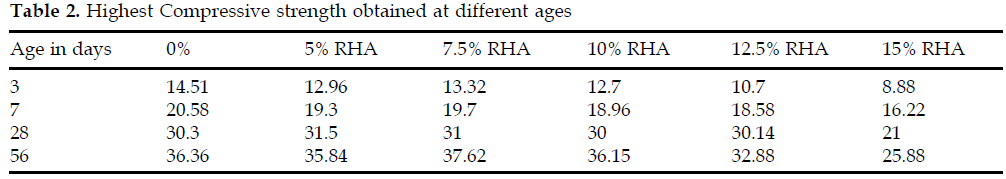

Standard 200 T compression testing machine is used for testing of samples of size 150*150*150mm.The samples are placed in the machine with neat capping done to ensure uniform transmission of load.
The failure load is noted down and the strength is calculated (IS 516 - 1959 and IS 9399 - 1979). Three each of 0%,5%,7.5%,10%,12.5% and 15% RHA replaced and3, 7, 28, 56 days water used samples are tested.

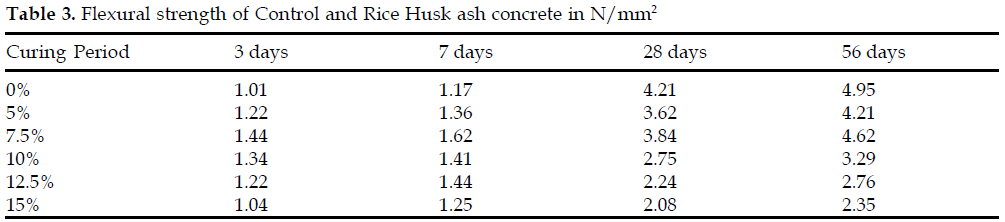

Similarly, standard 40T universal testing machine is used for testing the flexural beams of size 500mmx100mmx100mm.
The samples are mounted over roller supports and the load is applied at the centre to note the failure .The strength is calculated using formulae as per the necessary code (0IS 516 - 1959 and IS 9399 - 1979.).
The above results clearly show that 7.5 % replacement of Rice Husk Ash in concrete exhibits comparatively better strengths with respect to normal concrete. Hence, 7.5% RHA concrete may be compared with normal concrete for cost effectiveness.
1) Quantity of cement/cu.m= 383kg = 8 bags(apprx) x Rs 240/bag(50kg) = Total= Rs.1920
2) Rate per kg= Rs.4.80
3) 7.5% 0f 383 kg = 28.725 kg
4) 28.725 kg x Rs.4.80= Rs.137.88 per cu.m of concrete can be saved
However, transport and logistics have not been considered since rice husk is abundantly available at countryside and may be used.
Based on the limited study carried out on the strength behavior of Rice Husk Ash Concrete, the following conclusions are drawn:
1) Strength and cost savings (as shown above) of Rice Husk Ash concrete proves it to be a better material than various other supplementary materials which involve higher transport cost.
2) By using this Rice husk ash in concrete as replacement the emission of green house gases can be decreased to a greater extent. As a result there is greater possibility to gain more number of carbon credits.
3) The technical and economic advantages of incorporating Rice Husk Ash in concrete should be exploited by the construction and rice industries, more so for the rice growing nations of Asia.
4) This study is relevant in the global scenario towards attaining sustainable development.
